Show Me This Model

Easily show a specific model (robot or object) in a Drake simulation using the ShowMeThisModel !

Introduction

Picture this: You’ve just started to use Drake and want to show how your favorite URDF looks inside of the Drake simulator at a certain joint configuration. How do you do this?

The answer is often: “It’s complicated.”

That’s why we created ShowMeThisModel. You can share your robot model and (optionally) a desired joint configuration with this object and it will make it super simple to accomplish your mission!

You might find it helpful when debugging new robot models.

Example Usage

You can view multiple examples for this Production object in our examples/productions/helpful_for_debugging/show_me_this_model directory. In the following section, we will also include one example to demonstrate how to use ShowMeThisModel.

from importlib import resources as impresources
import numpy as np
from pydrake.systems.analysis import Simulator

#Internal imports
from brom_drake import robots
from brom_drake.all import drakeify_my_urdf
from brom_drake.scenes import ShowMeThisModel

def main():
    # Setup
    urdf_file_path = str(
        impresources.files(robots) / "models/ur/ur10e.urdf"
    )

    # Convert the URDF into a format that Drake likes
    new_urdf_path = drakeify_my_urdf(
        urdf_file_path,
        overwrite_old_logs=True,
        log_file_name="drakeify-my-urdf1.log",
    )

    # Visualize the URDF using the "show-me-this-model" feature
    time_step = 1e-3
    production = ShowMeThisModel(
        str(new_urdf_path),
        with_these_joint_positions=[0.0, 0.0, -np.pi/4.0, 0.0, 0.0, 0.0],
        time_step=time_step,
    )

    # Build Diagram
    diagram, diagram_context = production.add_cast_and_build()

    # Set up simulation
    simulator = Simulator(diagram, diagram_context)
    simulator.set_target_realtime_rate(1.0)
    simulator.set_publish_every_time_step(False)

    # Run simulation
    simulator.Initialize()
    simulator.AdvanceTo(15.0)

if __name__ == "__main__":
    main()

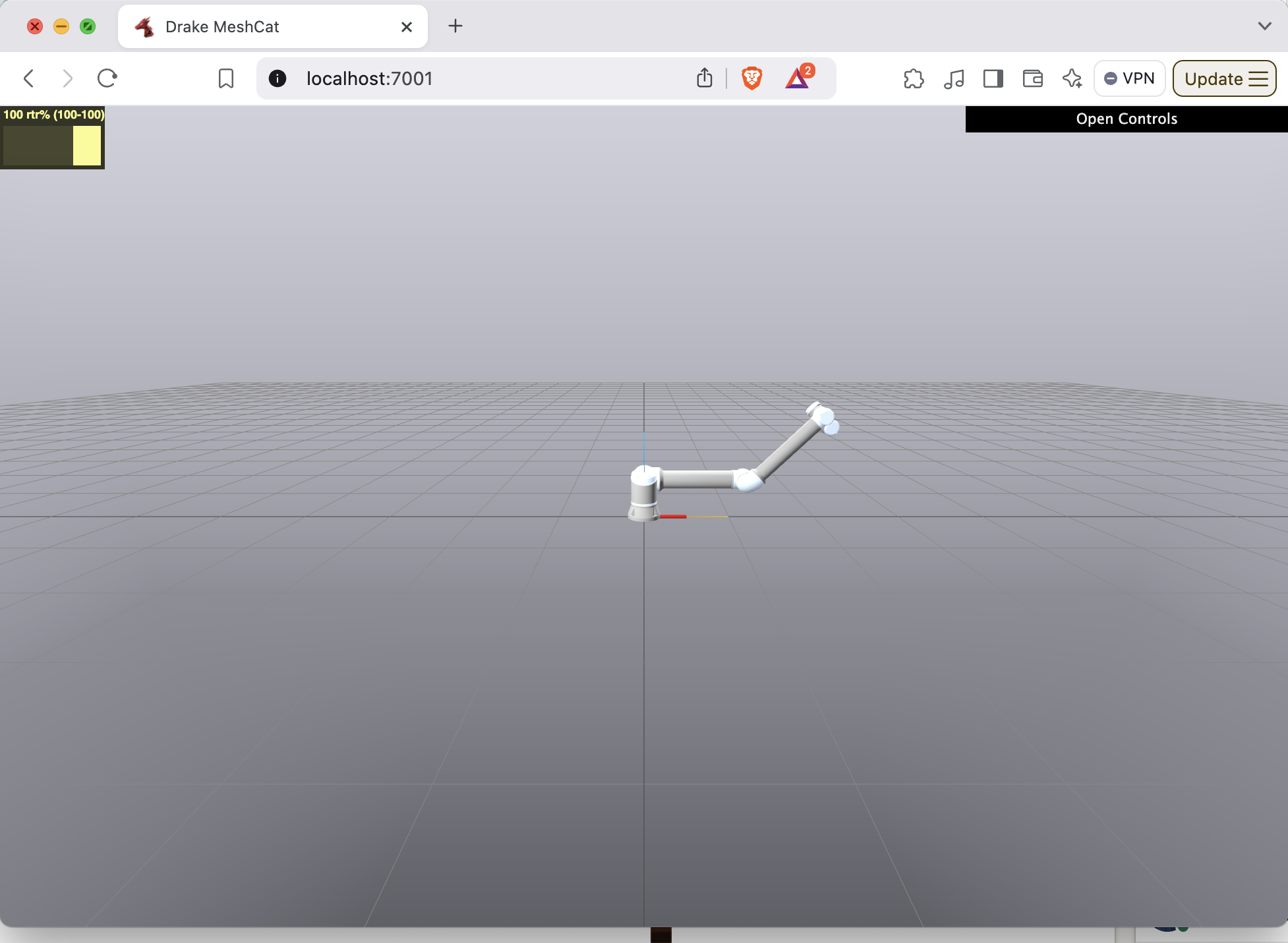

The result of this script will be the following simulation:

How it works

In the above snippet, we see a couple of things:

• The inputs to the Production are: - path_to_model: (Required) A string describing the location of the URDF (or other model) that you want to visualize. - with_these_joint_positions: (Optional) A list describing what position you want each joint to be in. - time_step: (Optional) The time step to use in the MultibodyPlant created internally in this Production.

• Once the production is created we can use the normal workflow (i.e., build the Production and then use the resulting Diagram object in your simulation) to view the robot in the desired joint configuration.

Note

(For advanced users of Drake) You can add other elements to the scene besides the robot specified by path_to_model. After creating the ShowMeThisModel object, you will be able to add additional items to its MultibodyPlant (it is saved in production.plant) and those additional items will appear in the simulation as well. This can be especially helpful if you’re trying to observe whether or not a robot is in collision with an object when it is in the configuration with_these_joint_positions.

Showing Collision Geometries

Another helpful feature of ShowMeThisModel is the ability to show the collision geometry of the URDF that you’re interested in.

This can be especially helpful if you have over-approximating cylinders or pill shapes that are meant to act as your collision geometries. If the collision geometry is very different from the visual geometry, then you may want to use this feature to double-check what the collision geometry looks like in a given configuration.

You can enable this feature by setting the show_collision_geometries argument to True when creating the ShowMeThisModel object:

production = ShowMeThisModel(
    str(new_urdf_path),
    with_these_joint_positions=[0.0, 0.0, -np.pi/4.0, 0.0, 0.0, 0.0],
    time_step=time_step,
    show_collision_geometries=True,
)

Which will produce the following simulation result for the UR10e robot:
